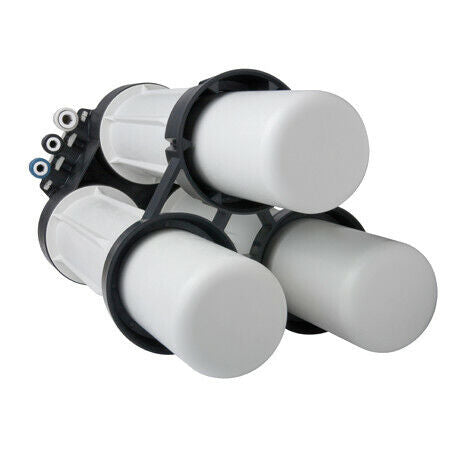

Pentair PRF RO Merlin Tankless Reverse Osmosis
High-Flow Tankless Reverse Osmosis Water Filter
Enjoy exceptionally pure drinking water with one of the highest-flow domestic reverse osmosis systems available.
The Merlin Tankless Reverse Osmosis System combines advanced reverse osmosis technology with an innovative tankless design, delivering fresh purified water directly from your mains supply whenever you need it. Producing up to 720 gallons (approximately 2,725 litres) per day, the Merlin eliminates the need for a bulky storage tank while providing a significantly higher flow rate than most conventional reverse osmosis systems.
Unlike traditional reverse osmosis systems that slowly fill a storage tank before water can be used, the Merlin continuously produces purified water on demand. This means you benefit from fresh, cool, great-tasting water without waiting for a storage tank to refill or sacrificing valuable cupboard space.
Why Choose the Merlin Tankless Reverse Osmosis System?
- Produces up to 720 gallons per day (GPD) of purified water.
- Delivers approximately 0.5 US gallons (around 1.9 litres) per minute.
- Tankless design for fresh water on demand.
- No bulky storage tank required.
- No booster pump required (subject to suitable incoming water pressure).
- Removes up to 99% of many dissolved contaminants, helping to improve the quality, taste and odour of your drinking water.*

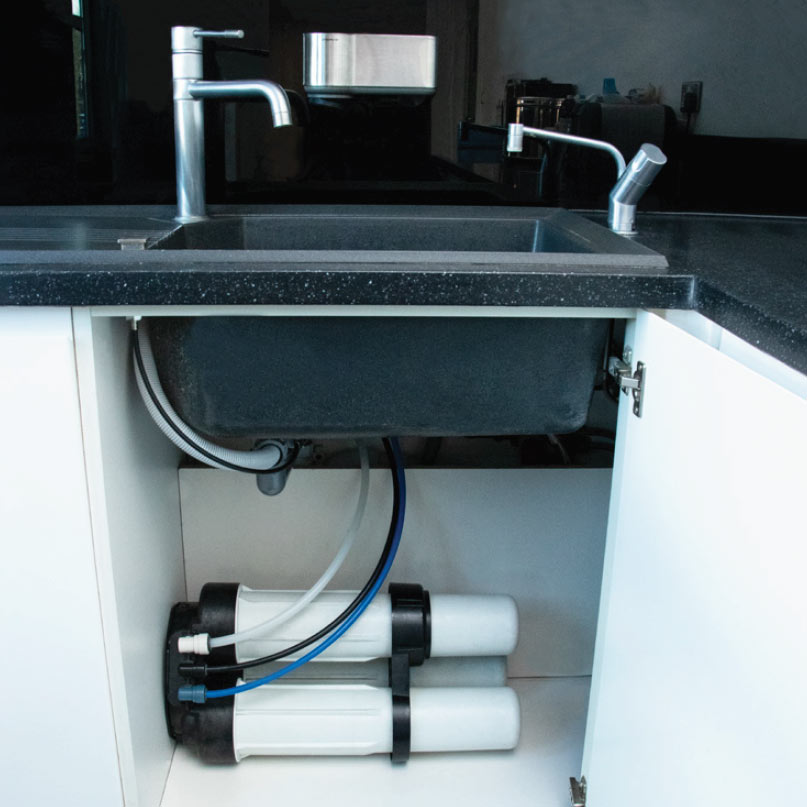

- Compact under-sink installation.
- Only one pre-filter and one post-filter typically require replacement every six months.
- High water production makes it ideal for demanding domestic and specialist applications.
Fresh Water On Demand
The Merlin is designed for households that want a premium reverse osmosis system without the compromises of conventional tank-based units.
Because water is purified as it is required, you don't have to wait for a storage tank to refill after heavy use.
Exceptional Purity
Reverse osmosis is recognised as one of the most effective methods of producing high-quality drinking water.
The Merlin's high-performance membrane can reduce a wide range of dissolved solids and contaminants, helping provide exceptionally pure water for drinking and food preparation.
Its impressive flow rate also makes it suitable for applications where larger volumes of purified water are required.
Ideal Applications
The Merlin Tankless Reverse Osmosis System is ideal for:
- Drinking water
- Cooking and food preparation
- Tea and coffee machines
- Ice makers
- Aquariums and marine systems
- Hydroponics
- Laboratories
- Filling dehumidifiers and steam appliances
- Window cleaning systems
- Producing purified water for spot-free car detailing when feeding a deionisation (DI) vessel, helping achieve a mineral-free rinse for a streak-free finish.
Easy Maintenance
The Merlin has been designed for reliable long-term performance with minimal maintenance.
Under normal domestic use:
- One pre-filter typically requires replacement every six months.
- One post-filter typically requires replacement every six months.
- The reverse osmosis membrane has a considerably longer service life, depending on incoming water quality and usage.
Technical Specifications
- System Type: Tankless Reverse Osmosis System
- Production Capacity: Up to 720 Gallons Per Day (GPD)
- Flow Rate: Approximately 0.5 US Gallons Per Minute
- Storage Tank: Not required
- Pump: No booster pump required (subject to suitable mains water pressure)
- Installation: Under-sink
- Maintenance: One pre-filter and one post-filter typically replaced every six months
- Water Supply: Fresh purified water produced directly from the mains supply
- Performance: Up to 99% reduction of many dissolved contaminants
- Applications: Domestic drinking water, commercial use, aquariums, hydroponics, laboratories and spot-free water production for vehicle detailing.
Dimensions:
Height 433 mm
Length 517 mm
Depth 246 mm
Technical specification:
Permeate Flow Rate
Min 1.5 LPM Max 3.78 LPM @ 80F
TDS Rejection
Min 90% Max 99%
Daily production rate
2700 Litres Per Day UK Water
Inlet Pressure: Min 40 PSI Max 80 PSI
Removal Rates:Sodium 99%, Calcium 99%, Magnesium 99%, Potassium 98%, Iron 99%, Manganese 99&, Aluminium 99%, Ammonium 97%, Copper 99%, Nickel 99%, Zinc 99%, Strontitan 99%, Cadmium 99%, Silver 98%, Mercury 98%, Barium 99%, Chromium 99%, Lead 99%, Chloride 99%, Bicarbonate 98%, Nitrate 97%, Fluoride 98%, Silicate 98%, Phosphate 99%, Chromate 99%, Cyanide 95%, Sulphate 99%, Thiosulfate 99%, Ferro Cyanide 97%, Bromide 98%, Borate 50%, Arsenic 99%, Selenium 99%, Bacteria 99%, Protozoa 99%, Amoebic Cysts 99%, Giardia 99%, Asbestos 99%, Oestrogen 99%, Sediment/Turbidity 99% and Perfluorooctane Sulphonate (PFOS) 99%.
This System is not designed to treat the whole property.
*Contaminant reduction depends on incoming water quality, operating conditions and correct maintenance of the system.
